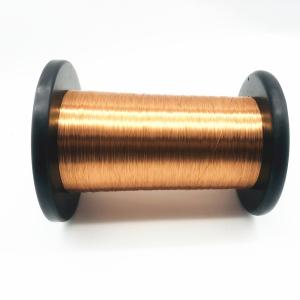

2uew / 3uew 45 Awg Super Enameled Copper Winding Wire Solderable

Name: 2uew 3uew 45 Awg Super Enameled Copper Winding Wire Solderable
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : UEW

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : 2UEW / 3UEW 45 AWG Solderable Enameled Copper Winding Wire

Color : Red/Green/Normal

Diameter : 0.06m

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Polyurethane

Rated Temperature : 155/180

Key word : Enameled copper wire

Contact Now

2UEW / 3UEW 45 AWG Solderable Enameled Copper Winding Wire

Features and Benefits of enameled copper wire

1. High tensile strength (25% higher than pure copper)
2. Good flexural properties
3. Enameled copper wire: High conductivity (93% IACS)
4. Excellent audio features.

5.Diameter: 0.013-2.00mm enameled copper wire

Name	2UEW / 3UEW 45 AWG Solderable Enameled Copper Winding Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.045mm
Type	Enameled copper wire

Test Items	Requirements	Test Data
Test Items	Requirements	1st Sample	2nd Sample
Appearance	Smooth & Clean	OK	OK
Conductor Diameter	0.045mm ±0.001mm	0.045	0.045
Thickness of Insulation	≥ 0.006 mm	0.009	0.008
Overall Diameter	≤ 0.056 mm	0.054	0.053
DC Resistance	≤ 11.339 Ω/m	10.74	10.698
Elongation	≥ 11%	22	20
Breakdown Voltage	≥350 V	1764	1567
Pin Hole	≤ 5 faults/5m	0	0
Adherence	No cracks visible	OK	OK
Cut-through	200℃ 2min No breakdown	OK	OK
Heat Shock	175±5℃/30min No cracks	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

2uew / 3uew 45 Awg Super Enameled Copper Winding Wire Solderable
